XT1AU is a powerful windows-based scan tool covering over 34 makes of heavy-duty commercial diesel trucks, buses, machineries and vehicles using J1939, J1708 and J1587 protocols. It supports almost complete diagnostics including DTC, DTC freeze info, live data, actuation test and advanced coding and programming.

Features

Supports Windows 10 and Windows 7 / 8
Professional full brands, full systems and full functions diagnosis service system
Extensive vehicle coverage for heavy-duty truck

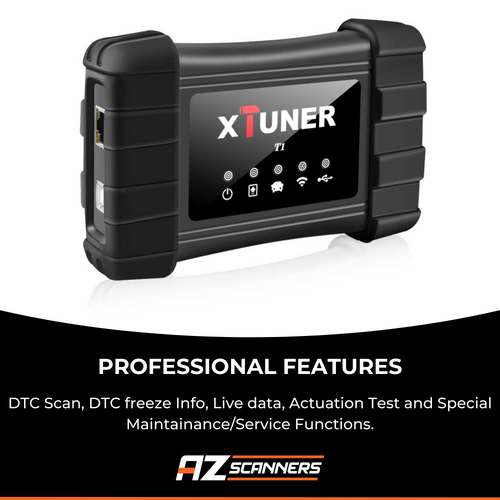

Complete function capability including DTC, DTC freeze Info, Live data, Actuation test and Special function, and professional data replay, data stream analysis for automobile repacking
Support one-key update/logging/Test report/Feedback/function list via wireless
Support online & offline DTC query
Beautiful UI interface, easy operation, good experience.
Also covers basic diagnostic on passenger cars, mini vans and light duty vehicle from 1996 to newest utilising ISO9141, ISO14230, ISO15765, SAE-J1850 VPW and SAE-J1850 PWM

Functions & Coverage

Basic Function: Read ECU Info, Read DTCs, Erase DTCs, Clear learning value, Data Stream, Actuations, Read freeze frame data.
Resetting: Basic Reset, Oil change, Cylinder shut off test, Cylinder compression test,Cylinder balancing test, EGR Soleno Test, EGR Pulse Ratio Test, DPF Manual Forced, DPF Normal Regeneration.
Systems Coverage: Engine system, Body system, SRS system, ABS (anti-lock brake system), Instrument System, Transmission system, Brake control system, Unit pump system, Common Rail System, Electronic control system, Natural gas system, Tail gas after-treatment system, etc.
Electronic Control Systems: ALLISON, BENDIX, BOSCH, CUMMINS, WABCO
Coding: Control unit adaptations, Injector Codes, Read/Write VIN,Road speed limit optional vehicle speed set.
Programming: Level calibration, Idle speed learning, Idle speed Adjustment, Camshaft timing control learning, etc.
Vehicle Coverage: ASTRA, BENZ, BREMACH, CATERPILLAR, DAF, DETROIT, ERF, FORD, FOTON, FREIGHTLINER, FUSO, HINO, HYUNDAI, INTERNATIONAL, ISUZU, IVECO, KENWORTH, KIA, GM, MACK, MAN, MaxxForce, NAVISTAR, RENAULT, SCANIA, TOYOTA, UD, VOLVO, ect.

System Coverage

Engine system
Body control system
SRS system Airbag
ABS-anti-lock brake system
Instrument System
Transmission system
Brake control system
Unit pump system
Common Rail System
Electronical control system
Natural gas system
Tail gas after-treatment system
Air-conditioning system
ATA-Anti-theft alarm system
AHA-Auxiliary heating system air-to-air
AUS-Audio system
BMS-Brake Management System
Bosch DENOX AdBlue System
Break control system
BWS-Preparation system
CCS-Climate control system
Comfort/assistance/safety systems
Compressed Air Reserve system
CSS-Collision safety system
CTS-Clock and Time System
EBS-Electronically Controlled Brake System
EHLA-Electrohydraulic steering system
EMS-Engine Management System
Fuel system
Exhaust Pressure Adjustment systems
ECM-Engine Control Module
Speed control systems
Turbo Control systems
and more

Note: functions & compatibility are vehicle dependent. Not all trucks or vehicles support the same diagnostic systems. If you have any questions please contact us

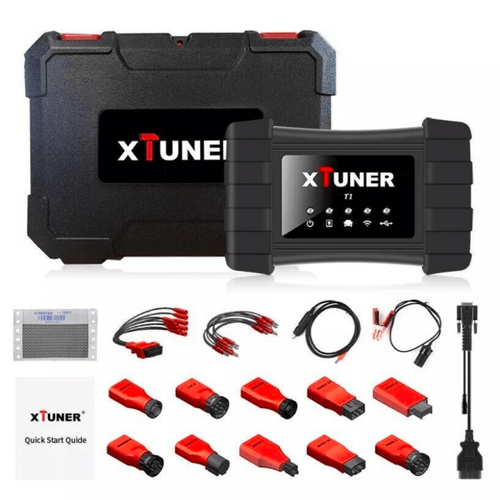

Package Includes

1PC x XTUNER XT1AU VCI
1PC x Main Test Cable with OBDII connector
1PC x BENS-14 Connector
1PC x CAT-9 Connector
1PC x DENSO-12 Connector
1PC x DIESEL-6 Connector
1PC x DIESEL-9 Connector
1PC x ISUZU-3 Connector
1PC x ISUZU-20 Connector
1PC x IVECO-30 Connector
1PC x OBD-16 Connector
1PC x VOLVO-8 Connector
1PC x Universal Cable
1PC x Battery Cable
1PC x Cigar Lighter Cable
1PC x USB Cable
1PC x Quick Start Guide
1PC x Password Envelope

(XT1AU)

Compatible with J1587, J1708 and J1939 OBD protocols

Extensive vehicle coverage for heavy-duty trucks, buses and machineries

Works with Windows 7 / 8 / 10 / XP (does not work with 10 Home)

Professional diagnostics, service functions & coding

Intelligent VCI built-in over-voltage automatic protection function, which ensures the diagnostic tool and vehicle are not damaged by accidental damage
Operating System: Windows XP/7/8/10

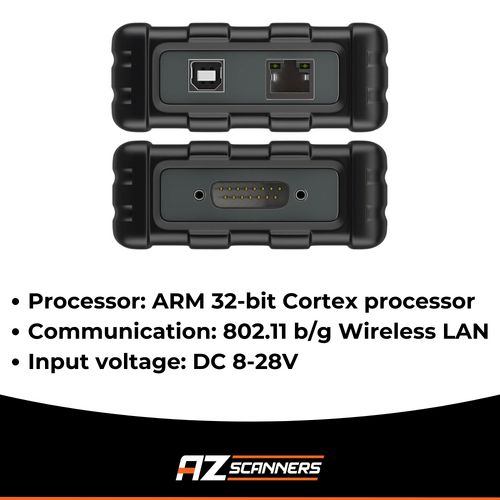

Processor: ARM 32-bit Cortex processor
Communication: 802.11 b/g Wireless LAN
Compatible with ISO9141,ISO14230,ISO15765,ISO11898,SAE-J1850 VPW,SAE-1850 PWM,UDS,K/L lines,High speed CAN,Middle speed CAN,Low speed CAN and Single wire CAN
Input voltage: DC 8-28V
Operating Temperature: -10 - 70 C, Relative humidity: <90%
Storage Temperature: -30 - 120 C, Relative humidity <90%

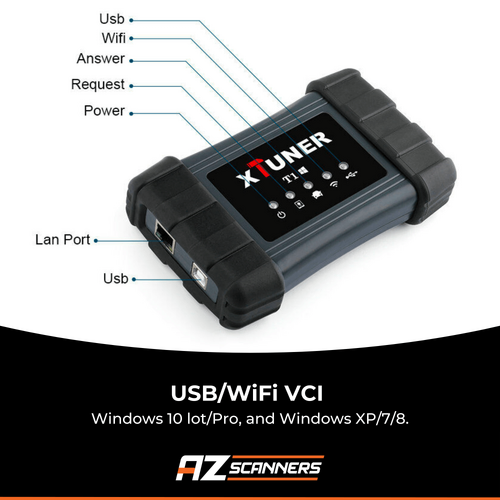

Communication model: WiFi or USB
