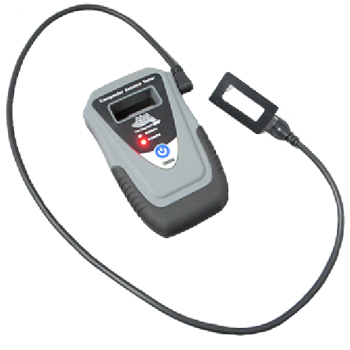

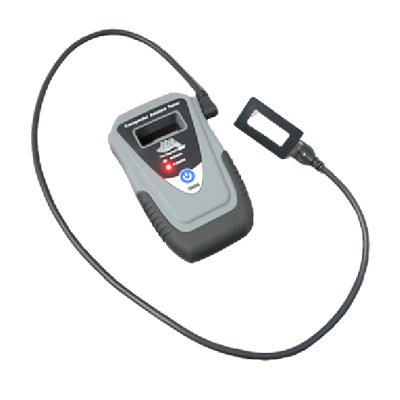

The TDB006 Transponder Antenna Tester is a full featured test device for checking the antenna used on transponder key systems. It has an internal antenna with high gain receiver to pick of the antenna signal, but additionally it has an external antenna wand connection to connect a wafer thin antenna for testing the push start, card slots and smart key types.

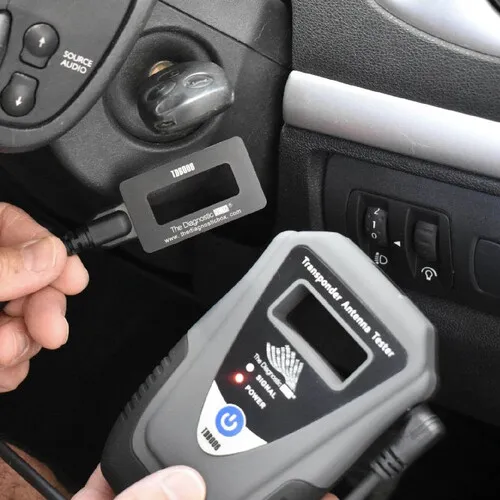

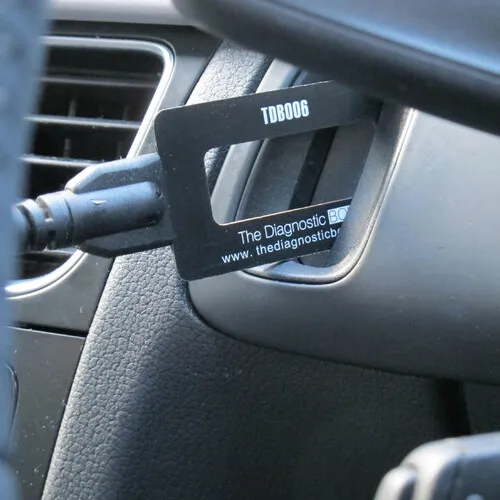

The external wand can slide into the key or card reader as well as the key, easily picking up the signal being sent from the vehicle.

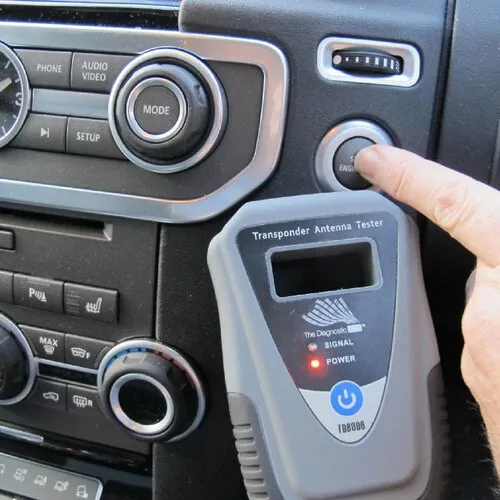

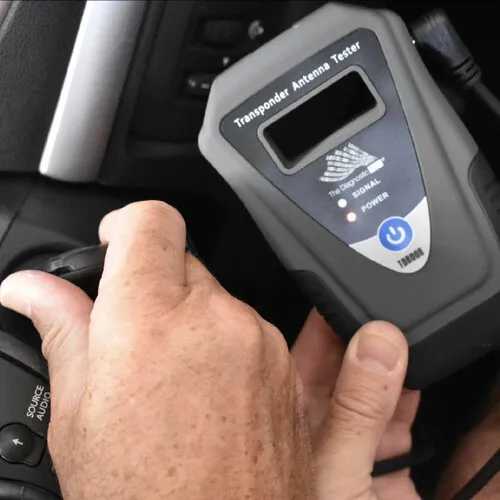

When the key or card is inserted, the vehicle sends a signal to the transponder inside the key and the TDB006 will pick up this signal, and identify that the slot key or card reader is functioning correctly.

User Manual



(TDB006)

Test Antenna used on Transponder Key System
Test Slot Reader Before Programming New Keys
Avoid Losing Original Key Due to Faulty Slot Reader
OPERATING VOLTAGE 4.5 VOLTS DC
AUTO POWER OFF 2 MINUTES
BATTERIES 3 x AA Alkaline or NiMh rechargeable
OPERATING CURRENT 10mA
WEIGHT 155 Grams
SIZE 84 mm (W) x 140 mm (H) x 29 mm (D)
POWER CONSUMPTION 45mW
FREQUENCY RANGE 125kHz and 134kHz
OPERATING TEMPERATURE RANGE 0 to 50 DEGREES C
