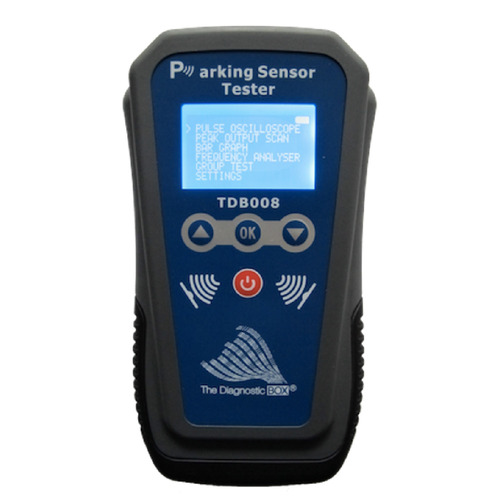

The TDB008 has been designed to give a visual indication of the output signals of parking sensors using ultrasonic sensors on a range of vehicles.

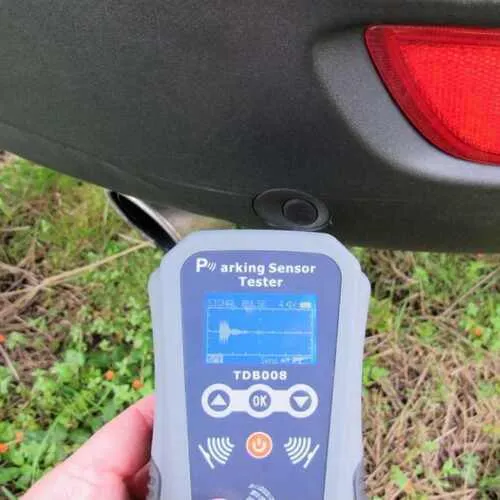

Many parking sensor systems now fitted to the latest vehicles require the engine running and the car in reverse gear. In addition to this the vehicles that have a parking assist will shut down if there is a problem and diagnostics of the sensors requires 2 people to check. The TDB008 with its extended pick lead allows a single person to operate the vehicle safely and test the sensors while in the drivers seat.

This makes the TDB008 both a time saving product, but also ensures the system can be tested safely and easily by the workshop technician.

The internal wide frequency range microphone covers the typical ultrasonic automotive range of 34.8 KHz to 68 KHz. The LCD screen can show the signal as a pulse, an average value in either graph form or as a bar graph or a waveform.

The TDB008 also has the facility to display the operating frequency of the ultrasonic sensor together with its signal strength. The Quick Test also provides a way to check all the sensors together, and compare the results to ensure they are all operating within their normal specifications.

Powered by 4 AAA cells the TDB008 has an operational time of over 20 hours of use, and it also includes a low battery warning and programmable auto switch off time.

User Manual

Main Features

Internal wide range microphone
External remote microphone pick up
Group test of up to 8 sensors
Sensitivity adjustment
Signal detection as: Oscilloscope Pulse / Peak scan / Bar Graph / Frequency analyser
Battery level Visual indicator and audible low battery warning
Audible tone for detecting ultrasonic signal (user selectable /programmable )
Auto Power OFF User programmable for 5, 10,15 mins or none
Adjustable screen contrast

(TDB008)

Displays the operating frequency of the ultrasonic sensor together with its signal strength with visual indication of output signals

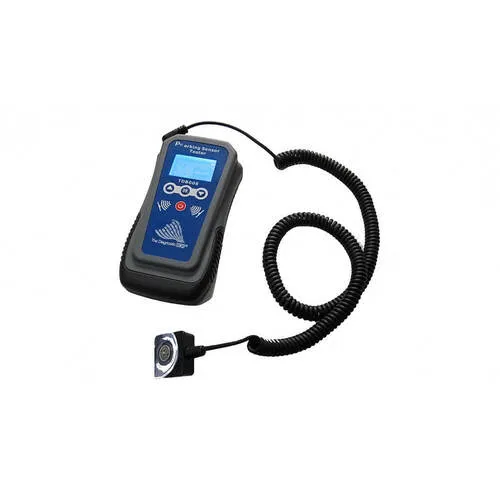

Extended pick lead allows a single person to test the parking sensors while in the drivers seat

Internal wide frequency range microphone covers the typical ultrasonic automotive range of 34.8 KHz to 68 KHz

Quick Test on all the sensors together to compare the results and ensure they are all operating within their normal specifications.

Operating voltage: 6 volts nominal

Operating current: 50 mA average

Power consumption: 300 mW

Detection range (frequency): 30KHz to 70KHz

Microphone range: 10Hz to >80KHz

Oscilloscope Pulse mode: 25uS/div

Peak Scan Scan time (Full screen): 2 seconds

Battery type: 4 x AAA cells Alkaline or NiMh rechargeable

Battery life: 20 hours (based on 1000mA/h Alkaline)

Display: 128 x 64 dot matrix with back light

Temp range: 0 to 50 ˚CIP rating I P61

Size: 170mm x 90mm x 40mm
