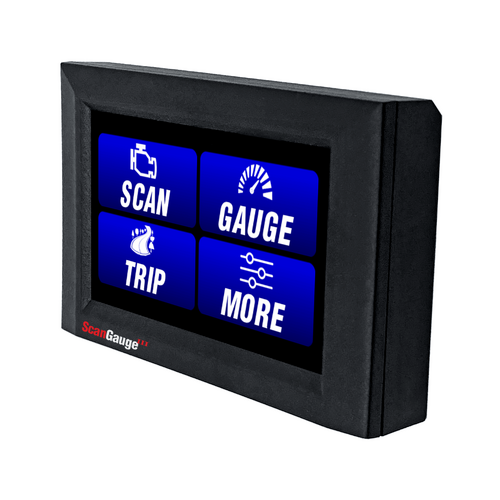

ScanGaugeIII can help you monitor your vehicle’s most vital systems and provide the kind of real-time information you’ve been missing. Features include built-in digital gauges, 5 sets of trip data and an easy-to-use Scan Tool that shows both set and pending trouble codes — all in an ultra compact design that installs in minutes.

The new ScanGauge-III features capacitive touch screen with over 16 million possible colours, audible and visual alams, automatic X-Gauge configuration and configurable gauges display for up to 9 gauges on each screen saved to your preference.




OBD2 DIGITAL GAUGES

OBD2 Gauge ScanGauge-3 Scan Gauge

ScanGaugeIII provides real-time gauges to show you what is going on “under the hood” with built-in digital gauges. The gauge screen allows you to select and display up to 9 gauges at a time, so you can monitor the current operating conditions of your vehicle in real-time. Customise the number of gauges and pages to your preference.

Gauge Name
AVG Average Fuel Economy

CLSD LP / OPEN LP

 Fuel System Loop Status
CPM Cost Per Mile/KM

FIA / CIA

 Intake Air Temperature
FPR Fuel Pressure

FWT / CWT

 Water Temperature

GPH

LPH

Gallons Per Hour

Litres Per Hour

MAP

BST

Manifold Absolute Pressure

Boost

MPG

KPG

MPL

LHK

KPL

Miles Per Gallon

Kilometers Per Gallon

Miles Per Litres

Liters Per 100Km

Kilometeres Per Liter

MPH

KPH

Miles Per Hour

Kilometers Per Hour
RPM Revolutions Per Minute
TFC Trip Fuel Cost
TPS Throttle Position Sensor
VLT Battery Voltage
IGN Ignition Timing
LOD Engine Loading
HPR Horsepower

*The information available may vary depending on vehicle's make and model. If the information is not available no data will be shown for it. If the same gauge is selected for more than one position, only one of them will show data.

Exclusive Vehicle Specific Gauge System

ScanGauge-3 XGauge Transmission Temperature Gauge EGT DPF Gauge

The ScanGauge-III features the exclusive X-GAUGE™ vehicle specific gauge system; you can monitor parameters such as transmission temperature, oil temperature, trip data and fuel economy information. X-Gauge™ gives you the ability to customise your ScanGaugeIII by adding additional vehicle specific digital gauges. The all new Auto Scan feature of the ScanGaugeIII can automatically scan your vehicle for available XGauges, look below for your vehicle to see what may be available.



Customise Display Colours

Match your instrument panel for an integrated look. ScanGauge-III display screen can be customised to any colour you want. Over 16 million possible colours available.

ScanGauge III multi colour OBD2 Gauge Display



TRIP COMPUTERS

With five built-in trip computers, the ScanGauge can keep track of everything from fuel cost to distance traveled and everything in between. Data is stored on the ScanGauge and is retained even when the power is disconnected. Each trip computer starts automatically and information is available anytime during the trip.

ScanGauge-3 Fuel Economy Trip Computer OBD2 Scan Gauge

Time & Distance Trip Computer Fuel & Tank Trip Computer
ScanGauge includes three trip computers based on time and distance. They include the Current Trip, Today Trip and Previous Day Trip. Each trip computer starts automatically and tracks the following parameters: The ScanGauge includes two trip computers based on the current tank of fuel. They include the Current Tank and Tank to Empty. Each trip computer starts automatically when you tell ScanGauge you have filled your tank.
KM/L / MPG KML / MPG for Current Tank
Fuel Used Fuel Used on Current Tank
Max Coolant Temperature Tank to Empty
KMs Driven Distance to Empty
Max RPM Distance Until Empty
Hours Driven Hours Driven on Current Tank
Max KPH Hours to Empty
Average KPH Average Speed
Fuel Cost Fuel Used Cost

ENGINE OBD2 SCAN TOOL

OBD2 Scanner Read Clear Trouble Code with ScanGauge-3

The ScanGauge can check for Engine Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves and their meanings. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.

  • Reads Trouble Codes
  • Clears Trouble Codes
  • Shows Conditions When Trouble Was Detected (RPM, COOLANT, TEMP etc)
  • Turns Off “CHECK ENGINE” Light
  • Shows When Onboard Tests Have Been Completed And Vehicle Is Ready To Pass OBDII emissions Testing



GREAT FEATURES

Easy to Install No Tools Required

Installs in just minutes without tools. Simply plug the ScanGauge into the diagnostic connection under the dash.

No Batteries Required

The single connection to the diagnostic connector under the dashboard is all that is needed.

Automatic Protocol Determination

ScanGauge automatically determines the protocol your vehicle uses and connects.

6-Foot Cord and Suction Cup Windshield Mount

The ScanGauge can be mounted up to 6 feet (1.8 Meters) from the under-dash diagnostic connector. The included Suction Cup Windshield Mount allows the ScanGauge to be quickly detached and then used to troubleshoot other vehicles.

User-Friendly Capacitive Touch Display

Simple touch operation allows you quickly and easily access the powerful features of the ScanGauge. Swiping two fingers up or down will raise and lower the brightness

Colour Backlight Display

Match your instrument panel for an integrated look.

English & Metric Units

The Digital Gauges and Trip Computer information can be shown in either English or Metric units of measure, including KM’s, Litres, Celsius, and kPA.

Compact Design

Unit Dimensions 12.7 x 8.1 x 2.55 cm

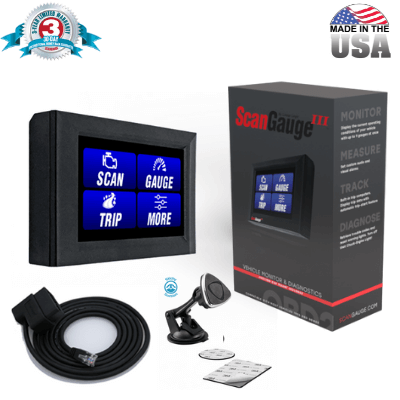

PACKAGE INCLUDES

ScanGauge-3 Unit

ScanGauge cable (1.8m)

Suction Cup Mount

(SGIII)

Works with all OBD2 protocols

Multi Colour Capacitive Touch Display

Read & Clear Trouble Codes

Multiple Trip Computers

Automatic XGauge Configuration

Visual and Audible Alarms

Up to 9 Gauges with Pages of favourite

ScanGauge-3

NON-VOLATILE MEMORY(stored information is not lost when disconnected)

  • User settings automatically saved
  • Up to 10 user commands can be stored and recalled
  • Today, Yesterday and Tank Trip data automatically saved
  • Vehicle settings automatically saved

EASY INSTALLATION

  • No Tools Required!
  • Cable detachable at the ScanGauge
  • Easily move from vehicle to vehicle
  • ScanGauge Compact Size
  • Size 4.8"W x 1.4"H x 1"D

AUTOMATIC POWER CONTROL

  • Automatic delayed power-down after engine shutoff
  • Automatic power-up when engine is started
  • Manual power-up with delayed power-down via HOME key

EASY TO OPERATE

  • Colour touch screen
  • Simple on-screen operation
  • User settable update rate (Slow, Normal and Fast)
  • A HOME key to quickly return to the start screen

ScanGauge Products

Comparison Table



ScanGauge-3

ScanGauge-2

ScanGauge-D

ScanGauge-KR
OBD-II Interface ✓ ✓ - -
J1939 and J1708  - - ✓ ✓
Scan Tool Functions ✓ ✓ ✓ ✓
Built-In Digital Gauges ✓ ✓ ✓ ✓
Built-In Trip Computers ✓ ✓ ✓ ✓
X-Gauge Feature ✓ ✓ ✓ ✓
Automatic X-Gauge ✓ - - -
Performance Monitor - ✓ - -
Colour Backlight - ✓ ✓ ✓
Colour Touch Screen ✓ - - -
WiFi Updates ✓ - - -
Audible & Visual Alarms ✓ - - -
Computes Horsepower ✓ - - -
Realtime Profit/Loss - - - ✓
Size 12.7 x 8.1 x 2.55 cm 12.2 x 3.8 x 2.55 cm 12.2 x 3.8 x 2.55 cm 12.2 x 3.8 x 2.55 cm
