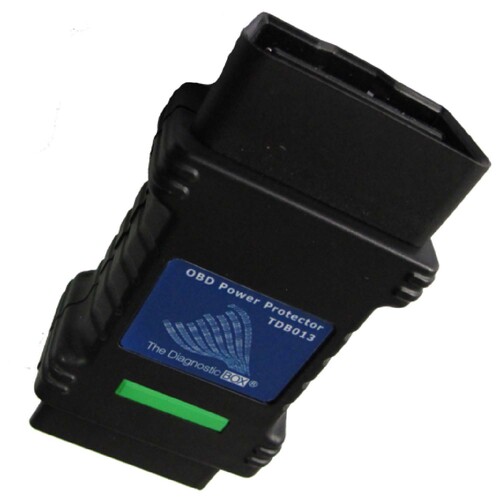

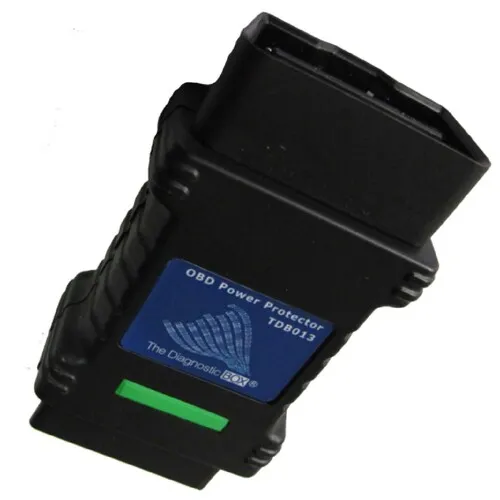

The TDB013 OBD Power Booster and Protector has been designed to protect your scan tool investment from being damaged by issues with the vehicle you are testing. Many vehicles can exhibit unknown problems and plugging in a piece of equipment worth thousands of dollars is sometimes a gamble.

With jump packs, booster packs and car chargers the amount of interference, voltage spikes and voltage surges can easily damage expensive equipment.

The TDB013 adds an additional level of insurance, and offers the protection you need. The TDB013 will take the damage rather than your expensive diagnostic equipment, and it wont leave you without your equipment for days and maybe even weeks while you get it repaired.

An additional clever feature of the TDB013 is its ability to manage the supply voltage that is on Pin 16 of the OBD port. This varies depending on the vehicle, condition of the battery and the wiring from the battery to the OBD port. It is not uncommon to have only 11 volts at the OBD port when the battery is at 12 volts. The TDB013 will maintain 12 volts to your diagnostic equipment regardless whether the OBD port is at 10 volts or even 15 volts. It will maintain a fixed 12 volts DC to pin 16.

This means it will smooth out any changes in voltage due to overcharging, boost packs or battery chargers which can cause havoc with anything connected to the vehicle.

In addition if the battery level is a little on the low side, and the diagnostic equipment requires 12 volts to function, then have a fixed 12 volts even when the battery is at 10 volts can be a real plus when trying to diagnose a vehicle problem.

The TDB013, a Diagnostic Machine Life Saver.....

(TDB013)

Works with all 16 Pins OBD Ports

Manage the Supply Voltage On Pin 16 of the OBD port

Protect Your Scan Tool From Voltage Spikes and Voltage Surges

Max continuous input voltage: 24 volts (clamping will occur at 27~30V)

Minimum input voltage: 5 volts

Continuous current: 1Amp

Maximum load current: 2Amps (for1 minute)

DC to DC converter frequency: ~ 300kHz

Efficiency: 80%@1Amp

Nominal Output voltage: 13volts

Input current protection: 5Amp reseable fuse

Temperature range: 0 to 50 ˚C

Size: L 85mm, W 45mm, H 25mm

IP Rating: IP10

LED indicators

Input connector: OBD16 pinMale

Output connector: OBD16 pin Female
