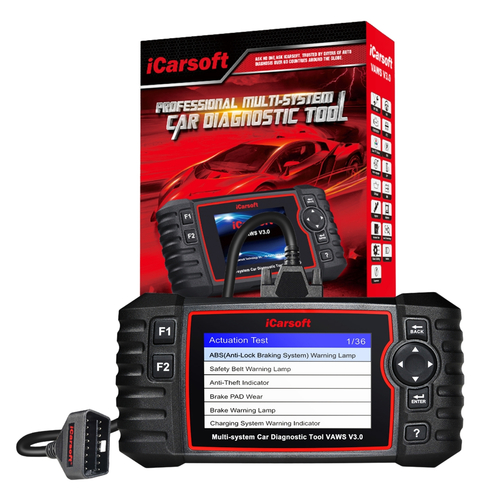

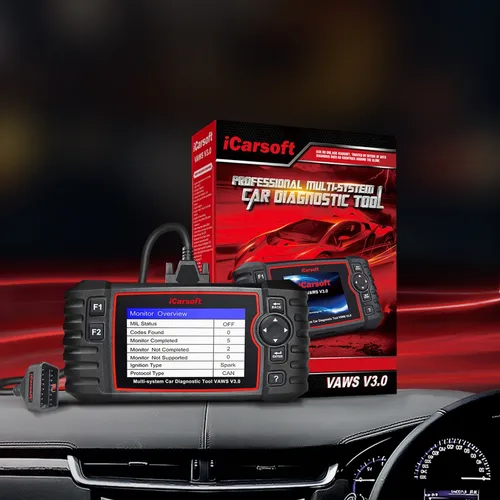

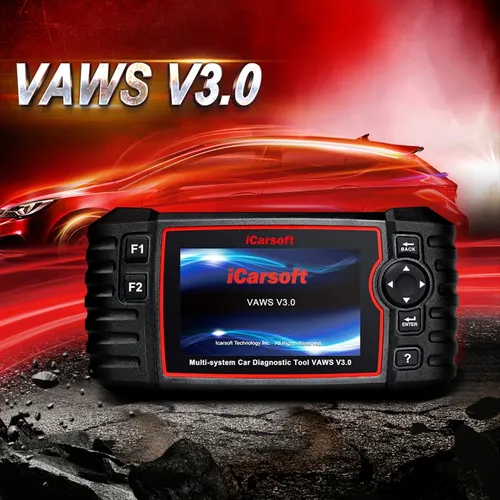

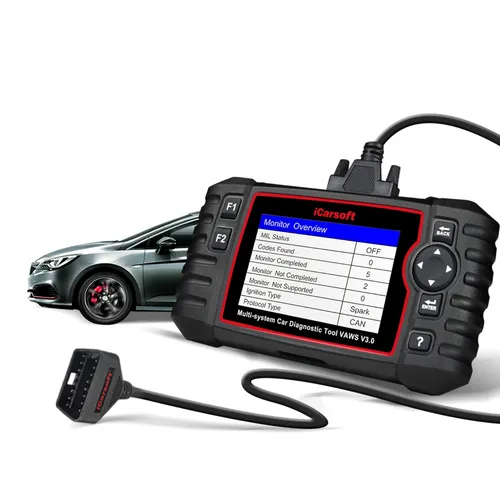

The iCarsoft VAWS V3.0 is a professional multi system scan tool for VAG cars covering Audi VW Seat and Skoda brands. Unlike engine code readers; the VAWS V3.0 can scan, read and clear diagnostic trouble codes DTCs from most systems including ABS, SRS, Transmission etc. It can also perform a number of advanced functions including oil reset, electronic park brake, battery programming, DPF regen, injector coding and many more.

Scan Tool Main Features

  • Fault code read/clear on multiple systems including engine, transmission, ABS and airbag etc
  • Support OBDII/EOBD Ten Modes of Operation.

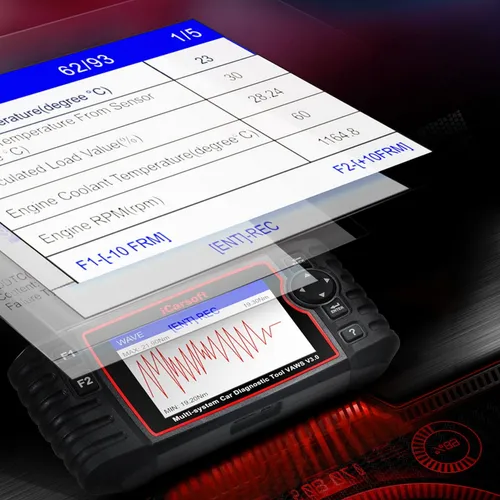

  • Read Live Data.
  • Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC.
  • Easy To Use With Silicone Keys.
  • Auto VIN technology can automatically identify model and year information in no time.

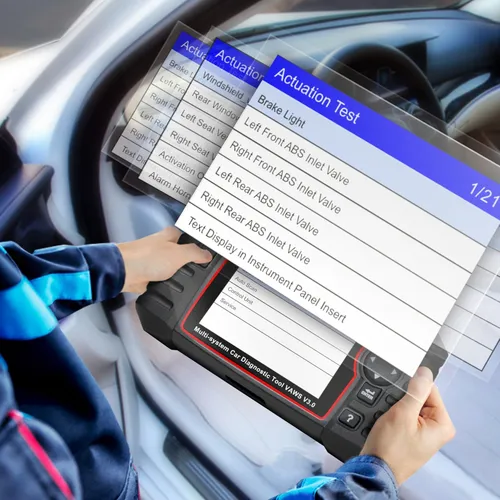

  • Actuation Test / Bidirectional Test is used to access vehicle-specific subsystem and component tests.
  • Support Freeze Frame of Fault Code functions.
  • Basic Setting,means reset some basic parameter settings for each control module,especially some parts / sensors, etc. Such as Sliding Roof Basic Setting, Activate ESP System/Function Test.
  • Adaption,this function allows you to perform adaptive learning/reset/calibration and other functions for each control module, and also includes some important module data for parameter adjustment.Such as Remote Control Adaptation, Central
  • Locking:Auto-Lock, Central Locking:Audible Locking/Unlocking Confirmation, TPMS ,SRS Airbag Crash Data Reset, etc.
  • Oil Light/Service Reset: Support service lamp reset.
  • Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialisation.
  • Battery Management System (BMS), registers new battery to the BMS while battery replacement.
  • Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
  • Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replace the throttle valve.
  • Steering Angle Sensor(SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrate SAS while steering part replacement.
  • Injector coding, relearn the injector control parameter while the injector renewed or replaced.
  • AFS Head Lamp reset means that the adaptive front lighting system can berotated to either side, pressing the button means they stay pointing straight forward, and don't turn anymore when turning the steering wheel.
  • Air Suspension, Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
  • The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
  • Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
  • DTC Library to lookup when user is operating this tool.
  • Upgrade Via Computer.
  • Multi-language:English, German, Dutch, Spanish, French and more.

Note!

  • Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
  • This scan tool covers over 20 years of models, so some functions may not be available on all years/models.

Package Includes

  • VAWS V3.0 main unit scan tool
  • User's manual
  • Main OBD-II cable
  • USB Cable
  • TF Card
  • Nylon Carry Case

(VAWSV3)

Compatible with OBD2 VAG Audi VW Skoda Seat
Multi-system diagnostics

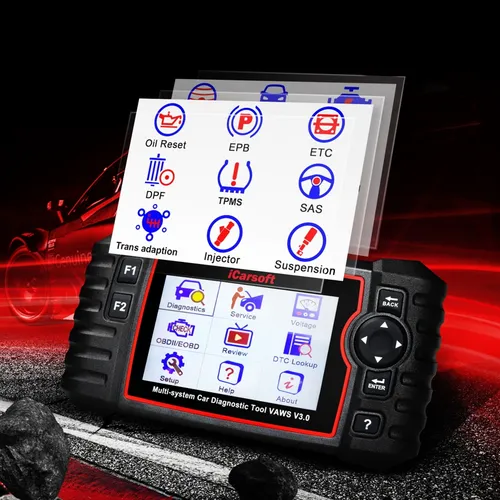

Oil reset, EPB and SAS, DPF, ETC and more!
Actuation & Bidirectional Tests
Free updates
Display: 4.0” TFT LCD, 480*320 Pixels
Operation Temperature: 0℃ -- 50℃
Storage Temperature: -20 ℃ -- 70 ℃
Power: 9V -- 18V
Operating current:150mA@12V(Typical)
Power consumption: 1.8W(Typical)

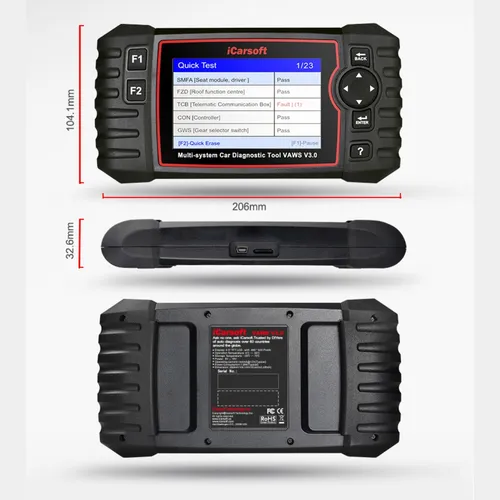

Dimension: 206*104.1*32.6 mm (L x W x H)

Single Brand OBD Scanners

Comparison Table



i400AU

Version 2.0

Version 3.0
Display 2.8" 4.0" 4.0"
Compatibility

OBD-I / OBD-II

(Up to 1-2 Years Old)

OBD-II

(Up to 3-4 Years Old)

OBD-II

(Up to 3-4 years Old)
Can Add Car Brands ✓ - -
Full System OBD Scan ✓ ✓ ✓
Auto VIN Identification ✓ - ✓
Live Data ✓ ✓ ✓
Service Reset ✓ Multiple ✓
Bi-Directional Test ✓ - ✓
ECU Coding ✓ - -
IMMOBILIZER ✓ - -
Software Update Free Free Free
  LEARN MORE LEARN MORE LEARN MORE

iCarsoft Single Brand OBD Scanners

Comparison Table

icarsoft obd scanners comparison



Version 1.0

Version 2.0

Version 3.0

MAX
Display 2.8" 4.0" 4.0" 4.3"
OBD Compatibility OBD-II / EOBD OBD-II / EOBD OBD-II / EOBD OBD-II / EOBD
Full OBD Scan ✓ ✓ ✓ ✓
Read & Clear DTC ✓ ✓ ✓ ✓
Live Data ✓ ✓ ✓ ✓
Auto VIN Identification - - ✓ ✓
Battery Voltage Test ✓ ✓ ✓ ✓
Oil Service Reset ✓ ✓ ✓ ✓
EPB (Electronic Parking Brake) ✓ ✓ ✓ ✓
ETC (Electronic Throttle Control) ✓ ✓ ✓ ✓
BMS (Brake Management Service) - ✓ ✓ ✓
SAS (Steering Angle Sensor Calibration) - ✓ ✓ ✓
DPF (Diesel Particulate Filter) - ✓ ✓ ✓
BLD (ABS Bleed Service) - ✓ ✓ ✓
INJ (Injector Coding Service) - ✓ ✓ ✓
TPMS Service - - ✓ ✓
SPS (Air Suspension Service) - - ✓ ✓
ACS (Air Conditioner Service) - - ✓ ✓
LAP (Head Lamp Service - - ✓ ✓
BSC (Body Stability Control) - - ✓ ✓
SIT (Seat Service) - - ✓ ✓
DWR (Door Window Roof) - - ✓ ✓
FFP (Fuel Pump Service) - - ✓ ✓
AFS (Air Filter Control Service) - - ✓ ✓
BMS (Brake Management Service) - - ✓ ✓
IDL (Engine Idle Service) - - ✓ ✓
Bi-Directional Tests - - ✓ ✓
Software Update Free Free Free Free
