Hantek Automotive Oscilloscope Kit-III
2CH Oscilloscope, Multimeter & Waveform Signal Simulator
SKU code: H2D82K3

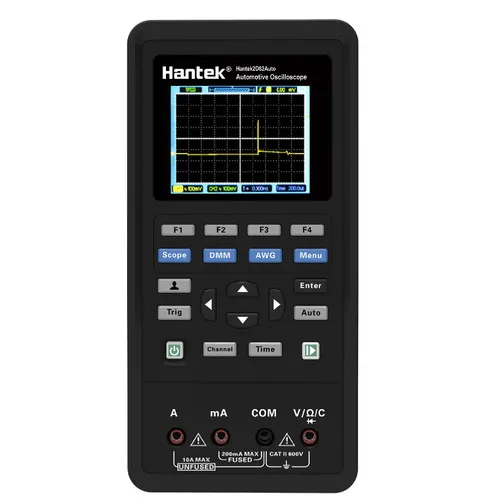

The Hantek 2D82 is an innovative automotive handheld diagnostic tool offering over 80 possible tests on vehicles. It features a powerful 2 channel oscilloscope, a universal digital multimeter and a signal source 1CH wave form generator. In addition it allows testing sensors, start & charge, actuators, ignition and more. The tool also features an HD colour LCD screen display with minimalist keyboard design and simple operations for easy use. A truly great value for any workshop for better and more efficient diagnosis.
Diagnostics Functions
- Sensors: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).
- Start & Charge: Charging circuit, current and voltage.
- Actuator: Petrol / Diesel.
- CAN-Bus: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.
- Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position.
- Ignition: Primary/Secondary.
Oscilloscope Functions
- 2 Channels oscilloscope, 80MHz bandwidth, 250M sampling rate
- 10mV-10V/DIV high input sensitivity and large input range
- Auto automatic measuring function
- Adjustable backlight brightness, backlight duration, and auto power off time
- Cursor measurement reference waveform, waveform storage function
- Colour highlight LCD screen
- Powered by two universal ICR18650 lithium battery only, able to work continuously for a full day and standby for weeks
- Digital voltmeter function
- Key tone settings
- Full function PC software
Digital MultiMeter Functions
- Multi-functional digital multimeter to measure AC/DC voltage, current, resistance, diode, capacitance, continuity and On/Off test.
Signal Simulator Functions
- 1 channel arbitrary/function waveform generator
- 250MSa/s sampling rate
- 12 bits vertical revolution
- output sine wave, square wave, triangle wave, trapezoidal wave and arbitrary wave
- Sine: 1Hz-25MHz / Square: 1Hz-10MHz / Triangle: 1Hz-1MHz / Trapezoid: 1Hz-5MHz
- Frequency resolution: 1Hz
- Output impedance: 50Ω

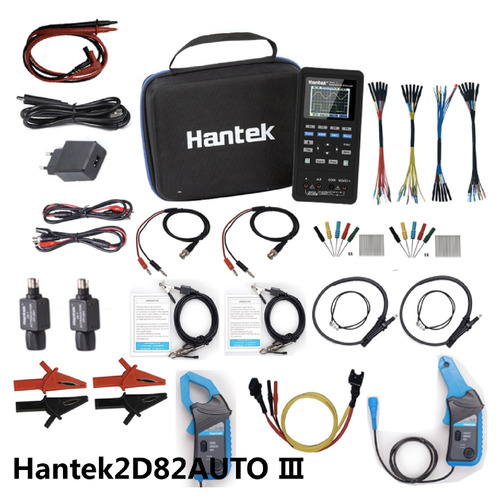

Package Includes
- 1 x Main Unit
- 1 x Tool Case
- 1 x Type C Cable
- 1 x Power Adaptor
- 1 x Multimeter Probe
- 2 x Test Leads with BNC Plug and Alligator Clip HT324
- 1 x Automotive Test Leads HT30B
- 1 x Automotive Ignition Probe HT25
- 1 x Acupuncture Probe Set HT307
- 1 x Coil-on-Plug Extension Cord HT308
- 1 x 20:1 Attenuator HT201
- 2 x Automotive Test Leads HT30B
- 2 x Automotive Ignition Probes HT25
- 2 x Acupuncture Probe Sets HT307
- 2 x Coil-on-Plug Extension Cords HT308
- 2 x 20:1 Attenuators HT201
- 2 x Large Dolphin/Gator Clips HT18A
- 1 x Breakout Leads HT301
- 1 x 6 Way Breakout Leads HT306-2.8mm
- 1 x 6 Way Breakout Leads HT306-2.3mm
- 1 x 6 Way Breakout Leads HT306-1.5mm
- 1 x 6 Way Breakout Leads HT306-1.0mm
- 1 x 65A AC/DC Current Clamp CC65
- 1 x 650A AC/DC Current Clamp CC650
(H2D82K3)
Performs over 70 diagnosis tests for sensors, actuators, start & charge, ignition & CAN-Bus systems |
2 Channels oscilloscope, 80MHz bandwidth, 250M sampling rate |
AC/DC voltage, current, resistance, diode, capacitance and continuity test. |
1 channel arbitrary/function waveform generator with 250MSa/s sampling rate |

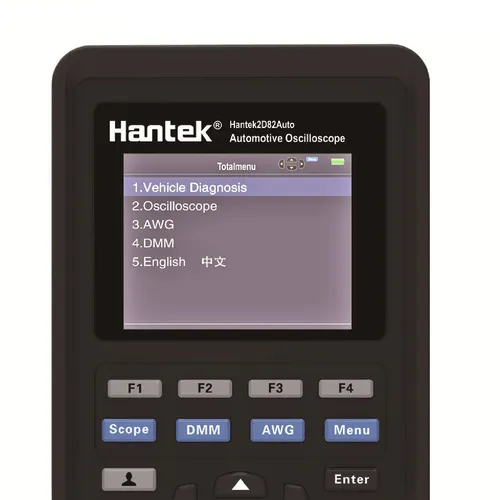

HD colour LCD screen display with minimalist keyboard design and simple operations for easy use |
Available in 3 different Kits |
Diagnostic tests require suitable accessories. Please check available kits and accessories included with the kit. Accessories are also sold separately
