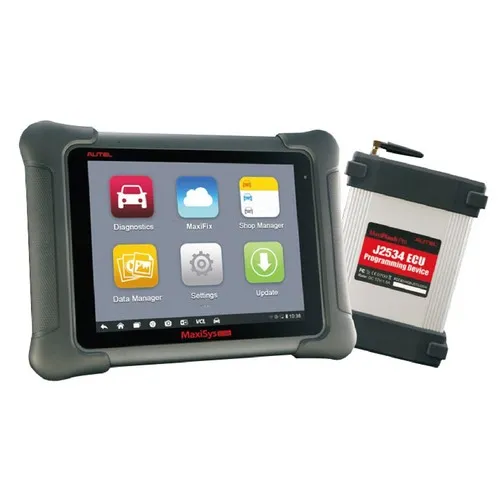

Autel MaxiSys Elite Bi-Directional Scan Tool
SKU code: MaxiSysElite
Autel MaxiSys Elite features its fast and intuitive Android operating system. Powered by NVIDIA's Tegra 4, the world's fastest mobile processor, its visually stunning 9.7" Retina display offers ultra-high resolutions up to 2048x1536 and an optimised array of sophisticated and powerful applications. The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming and J2534 ECU Flashing
Main Features
- Comprehensive vehicle diagnostics & test functions to advanced ECU programming.
- J2534 ECU programming capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
- Compatible with over 80 US domestic, Asian and European makes and models
- Hardware running speed is twice than Maxisys MS908P(SP187),
- Handheld 9.7” tablet with capacitive super-sensitive touch screen able to respond to gloved, moistened, and even greasy fingers!
- Support Wifi and Bluetooth connections.
- The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.
- Extended battery life and intelligent power saving.
- Supported Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V
Package Includes:
- 1pc x Maxisys Elite Interface
- 1pc x Lighter Fuse
- 1pc x GM/Daewoo-12 adaptor
- 1pc x BMW-20 adaptor
- 1pc x Benz-38 adaptor
- 1pc x Kia-20 adaptor
- 1pc x Fiat-3 adaptor
- 1pc x PSA-2 adaptor
- 1pc x Mitsubishi/Hyundai-12+16 adaptor
- 1pc x Nissan-14 adaptor
- 1pc x Honda-3 adaptor
- 1pc x USB Cable
- 1pc x Cigarette Lighter
- 1pc x Compact Disc (CD)
- 1pc x AC/DC External Power Adapter
- 1pc x Clipper Cable
- 1pc x Screwdriver
- 1pc x VW/AUDI-2+2 adaptor
- 1pc x Chrysler-16
- 1pc x Benz-14
- 1pc x Mini USB Cable
- 1pc x Ethernet Serial Cable
(MaxiSysElite)
Comprehensive system diagnostics on over 80 brands and models |
J2534 ECU Programming |
Handheld 9.7” Android Retina Powered by NVIDIA's Tegra 4 |
Ergonomically Angled Docking Station |
2 Years Software Update |
Operating System | Android 4.4.4 KitKat |
Processor | NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU |
Memory | 2GB RAM & 32GB Embedded Memory |
Display | 9.7” Retina display with 2048X1536 resolution & Capacitive touch screen |
Connectivity | 802.11a/b/g/n/ac WIFI Version 2.1 3Mbs Bluetooth RJ45 Ethernet Connection 3.0 USB (2.0 Compatible) HDMI 1.4a SD Card (Support up to 32GB) |
Camera | Rear: 8.0 Megapixel, Autofocus with Flashlight Front: 2.0 Megapixel |
Sensors | Ambient Light Sensor, G-sensor |
Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
Power and Battery | 3.7V/13600mAH Lithium-polymer battery DC/12V/3A Power Supply |
Input Voltage | DC/12V/3A |
Power Consumption | Max 20W |
Operating Temperature | -10 to +55°C |
Storage Temperature | -20 to +70°C |
Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V |
Autel MaxiSys Diagnostic Scan Tools
Comparison Table
|
MS906 |
906BT |
MS Elite |
MS909 |
|
|
|
|
|
|
|
|
|
|
Hardware / Software |
||||
Vehicle Connection |
Cable |
MaxiVCI |
MaxiFlash VCI |
MaxiFlash VCI |
Display Size |
8” |
8” |
9.7” |
9.7” |
Memory Storage ROM |
32GB |
32GB |
64GB |
128GB |
Battery Life |
5000 mAh |
1000 mAh |
13600 mAh |
15000 mAh |
Connector Kit |
☑️ |
☑️ |
☑️ |
☑️ |
Operating System |
Android 4.4.2 |
Android 4.4.2 |
Android 4.4.4 |
Android 7.0 |
Camera Rear |
☑️ |
☑️ |
☑️ |
☑️ |
Diagnostics Functions |
||||
All SYS DTC Scan |
☑️ |
☑️ |
☑️ |
☑️ |
Service Functions |
☑️ |
☑️ |
☑️ |
☑️ |
Bi-Directional Control |
☑️ |
☑️ |
☑️ |
☑️ |
Auto VIN Technology |
☑️ |
☑️ |
☑️ |
☑️ |
ECU Coding |
- |
☑️ |
☑️ |
☑️ |
ECU Programming (J2534 Pass-Thru) |
- |
- |
☑️ |
☑️ |
Data Manager |
☑️ |
☑️ |
☑️ |
☑️ |
Shop Manager |
☑️ |
☑️ |
☑️ |
☑️ |
Remote Support |
☑️ |
☑️ |
☑️ |
☑️ |
Optional Add-Ons |
||||
Advanced TPMS |
- |
- |
- |
- |
Oscilloscope |
- |
☑️ |
☑️ |
☑️ |
Inspection Camera |
- |
☑️ |
☑️ |
☑️ |
ADAS |
- |
☑️ |
☑️ |
☑️ |
|
