Autel MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster bootup and operation speed. Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan and read and erase codes, view Freeze Frame and Live Data on U.S., Asian, and European vehicles, 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.

Main Features

Powerful Quad Core 4x 1.8Ghz (A55)
7”1024x600 LCD capacitive touchscreen
Internal reliable 64GB Memory
Android 11 Operating System for fast boot-up and multitasking
Powerful combination of key programming/all system diagnostics/advanced maintenance services
Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all key lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transponder read/write, EEPROM/MCU read/write
Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
.Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

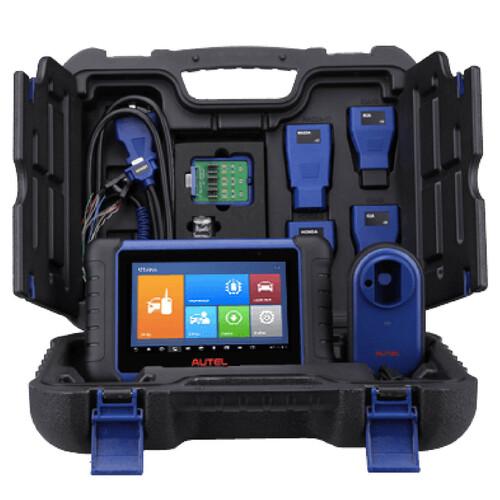

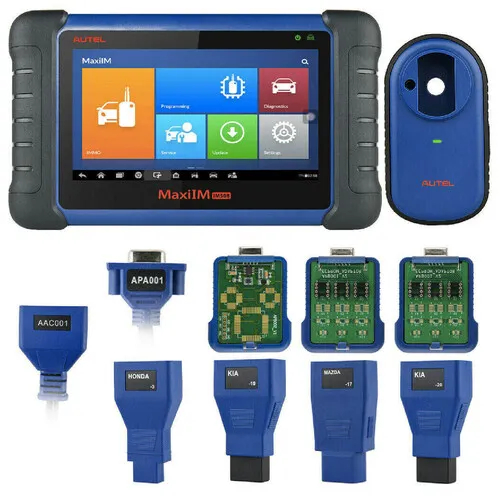

Package Includes

1PC x MaxiIM IM508S Tablet
1PC x XP200 Key Programmer
1PC x Main Cable
1PC x Mini USB Cable
1PC x USB External Power Adapter
1PC x APB001 (EEPROM Adapter)
1PC x APB002 (68HC908 Adapter)
1PC x APA002 (EEPROM Socket)
1PC x APA001 (EEPROM Clamp Integrated MC9S12 Cable)
1PC x AAC001 – MED17 Cable
1PC x KIA-10 Adaptor
1PC x KIA-20 Adaptor
1PC x Mazda-17 Adaptor
1PC x Honda-3 Adaptor
1PC x Carrying Case
1PC x Quick reference guide

(IM508S)

The Autel MaxiIM IM508S is a fast, easy-to-use, and ultraportable immobiliser and key programming device. Equipped with the XP200 key programmer, IM508 is capable of providing extraordinary service functions for the immobiliser system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions.

Operating System Android™ 11

Processor Quad Core 1.8 Ghz (A55)

Memory 64GB

Display 7-inch LCD capacitive touchscreen with 1024x600 resolution

Connectivity Mini USB 2.0 / USB2.0 / Wi-Fi

Micro SD card slot(supports up to 32GB)

Sensors Ambient light sensor for brightness auto changing

Power and Battery 3.7 V/5000 mAh lithium-polymer battery / Charges via 5 VDC power supply

Tested Battery Life: Around 4.5 hours of continuous use

Battery Charging Input: 5V/1.5A

Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V

Operating Temp: 0 to 50°C (32 to 122°F)

Storage Temp: -20 to 60°C (-4 to 140°F)

Operating Humidity: 5%-95% non-condensing

Net Weight: 885g(2.31|b.)

Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Delivery

99% of orders are dispatched from our Melbourne warehouse within 24 hours after payment is cleared. All orders are shipped with Australia Post e-Parcel with tracking and signature on delivery.

Express shipping is available at additional cost. For next day delivery, please ensure your postcode is within Australia post Next Day Delivery network.

Returns

We offer 30 days money back guarantee on all orders. If your item was purchased in error, or you've simply changed your mind, it may not be too late for a refund. The item must be returned in original re-saleable condition - Not opened, used or damaged and ready to be put back on the shelf.

Warranty

All products supplied by AZscanners come with 12 months limited warranty unless otherwise specified. Warranty covers defects in materials and/or workmanship. If a defect arises and a valid claim is received, AZscanners may at its option repair or replace the product.

Naturally the warranty cover does not extent to cover damage caused by normal wear and tear, accidents, misuse, lack of maintenance, neglect, natural disaster, or other external causes; to damage caused by operating the equipment in a manner outside that described in the instructions.
