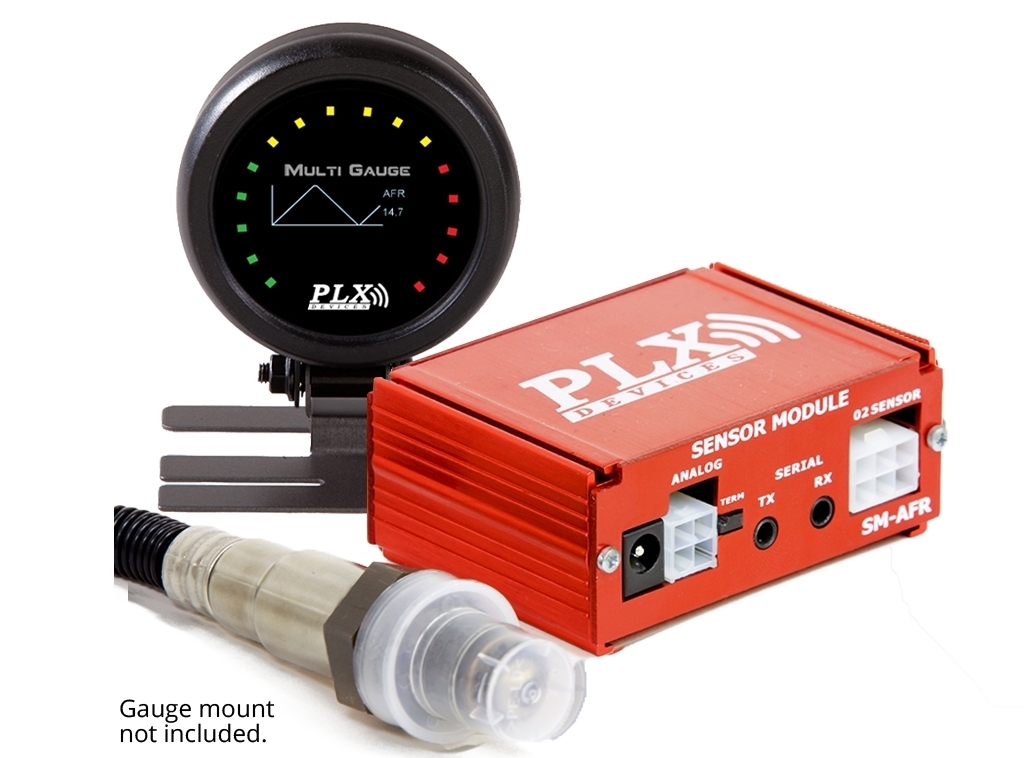

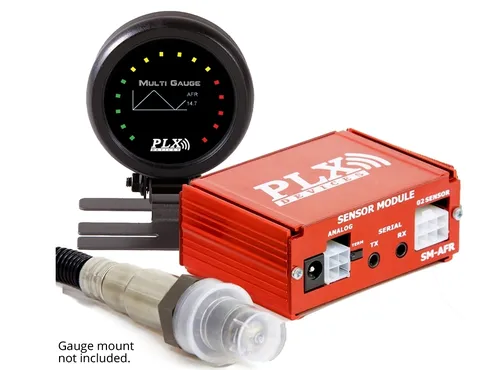

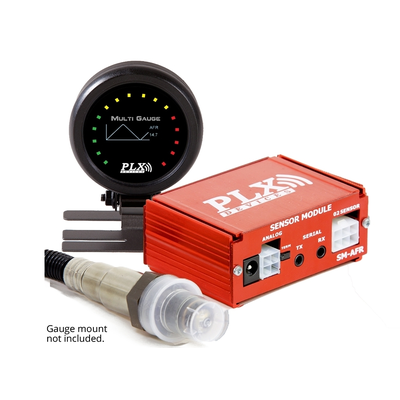

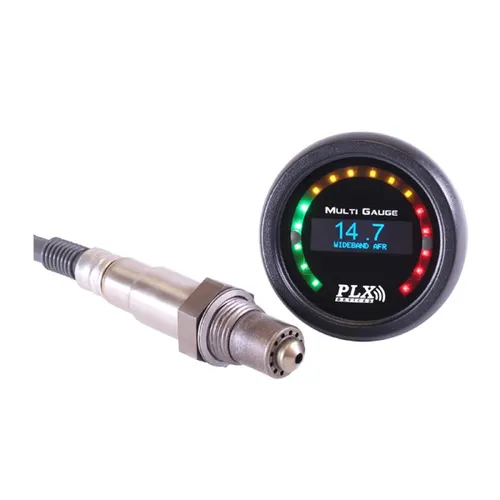

The PLX Wideband AFR (UEGO) gauge combo combines an accurate, fast response wideband AFR (Air Fuel Ratio) controller with the world's most advanced touch screen 2 1/16" gauge (52mm). It includes a Bosch LSU4.9 wideband oxygen sensor. The wideband controller (SM-AFR) works with petrol, bio diesel, ethanol, methanol, E85, LPG, and CNG. It includes two analog outputs (wideband 0-5V, and narrowband 0-1V) for interfacing with 3rd party devices and one digital serial output for interfacing with the DM-6 gauge and other Multi Gauges. The wideband analog output is ideal for interfacing with aftermarket ECU's and data loggers. The narrowband output is ideal for stock narrowband oxygen sensor replacement where the simulated narrowband analog output is fed back into your ECU to make it operate as if the stock narrowband oxygen sensor is still installed while running the PLX wideband setup. All three outputs can be used simultaneously. Additional features include advanced soft start technology which prolongs the oxygen sensor's life and an aluminum enclosure for durability and reliability.

The Gen4 employs the innovative PLX Devices new intelligent health monitoring technology where the oxygen sensor is meticulously monitored every 2mS (488 times per second) to obtain peak performance, accuracy and reaction time. Coupled with the updated patented DM-6 touch screen MultiGauge, battery voltage is displayed from 9V-20V, sensor life is displayed from 0-100%. The oxygen sensor reaction time is displayed from 10mS/1000mS on the brilliant high contrast OLED display.

Gen3 vs. Gen 4

  • More accurate
  • Uses only 7.5Watts compared to 10Watts
  • Faster response time
  • Improved sensor durability
  • Faster warm up time
  • Maintains accuracy throughout life
  • Less susceptible to contamination to surrounding pollution
  • 10+ years of average service life

Main Features

  • New Sensor: Improved reliability, reaction time, warm up time, and reduced power consumption
  • New Parameters: O2 Sensor Health, O2 Sensor Reaction Time, Voltage
  • New Bosch LSU 4.9 Sensor
  • Plug and play controller and gauge combo
  • No Calibration Required
  • Soft start technology
  • 2 analog outputs
  • 1 digital input, 1 digital output
  • Compatible with multiple fuels
  • Accurate to 0.1 AFR resolution (gasoline)

Package Includes

  • SM-AFR main unit

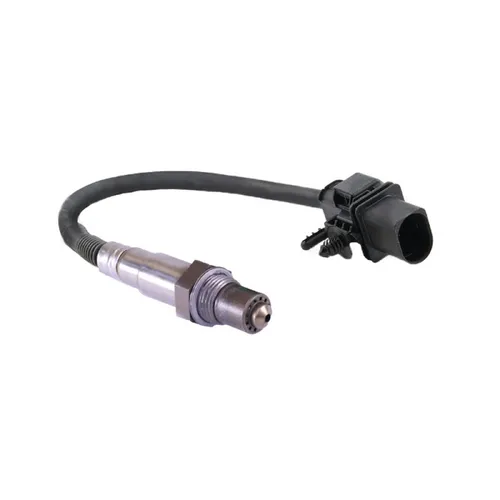

  • Bosch LSU 4.9 wideband sensor

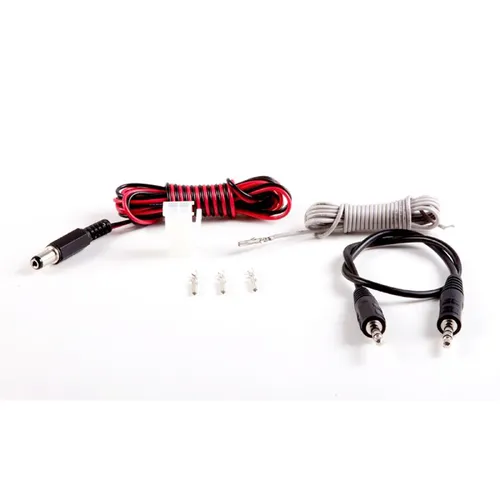

  • O2 sensor harness 10ft
  • 4ft power wire with 2.1mm connector
  • 4ft Analog wires and connector with 4 terminals
  • 1ft Serial Cable
  • Termination jumper
  • User Manual
  • DM-6 2 1/16" (52 mm) Gauge
  • 4 Pin connector for SM-AFR connectivity
  • 2 Terminals for 4 pin Connector
  • *O2 Bung and Cap Sold Separately

(SM-AFR-DM6)

Accurate, fast response wideband AFR (Air Fuel Ratio)
Includes DM6 - with the world's most advanced touch screen 2 1/16" gauge
Includes a Bosch LSU4.9 wideband oxygen sensor
Uses only 7.5Watts compared to 10Watts

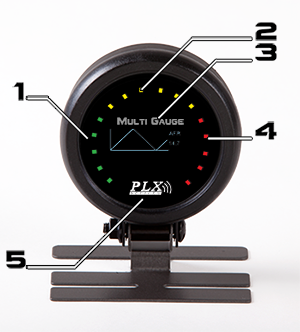

DM6 Gauge

  1. Left Capacitive Button
  2. 16 Green/Orange/Red LEDs
  3. 1.1" OLED Screen (124 x 36 pixels)
  4. Right Capacitive Button
  5. PLX Capacitive Button
  • Physical Dimensions: Standard 2 1/16 x 0.7" (52 X 18 mm)
  • Display Technology: 1.10" OLED Screen (124 x 36 pixels) LED (16 Green, Yellow, Red)
  • Viewing Angle: 180 Degrees
  • Polarisation: None
  • Supply Voltage: 3.3V and 8V from Sensor Module
  • Power Consumption: < 1 Watt
  • Cable Length: 6' Power, 6" Serial
  • Operating Temp: 0 - 85 Degrees Celsius
  • Human Interface: 3 Button Capacitive Touch
  • Number of Sensors: 16 Maximum Daisy Chain
  • Supported Units: US Standard, Metric



SM-AFR Wideband O2 Controller

  1. 12V power input
  2. 4 prong analog clip
  3. Termination jumper
  4. Serial RX Plug (In)
  5. Serial TX Plug (Out)
  6. Sensor Input Clip
  • Physical Dimensions: 2 x 2.875 x 1.125" (52 x 75 x 28mm) L x W x H
  • Technology: PLX Critical Response Technology, Fast Response PID
  • Accuracy: < 0.1AFR (Gasoline) Wideband, < 0.2AFR (Gasoline) Narrowband
  • Measurement Range: 10-20 AFR (Gasoline), 0.68 - 1.36 lambda (Gasoline), 0 - 100 O2 Sensor Health, 0 - 1000 mS Reaction Time, 9 - 20 Volts
  • Analog Outputs: Wideband Linear 0-5V, Narrowband 0-1V (Driving Current 20mA)
  • Operating Voltage: 9V-20V
  • Power Consumption: 20 Watts (Max), 13 Watts (Typical)
  • Power Supply Technology: High Efficiency Switching with Soft Start Technology
  • Operating Temperature: 0 - 85 Deg Celsius
  • Sensor: One Bosch LSU 4.9
  • Enclosure: Automotive Grade Plastic
